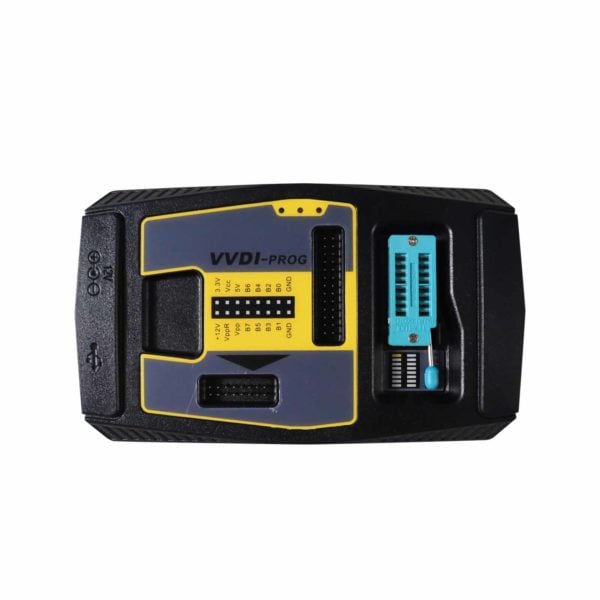

Xhorse VVDI PROG ECU Programmer

Support VAG EDC17 and BMW ECU. And the possible causes of error will be listed. The self-test function enables you to check if the machine works well. A high-speed USB communication interface enables the software to automatically connect. Can supply power via USB cable, the software will automatically prompt if the external USB power supply is needed. The built-in update software allows users to update VVDI Prog firmware timely. Xhorse VVDI PROG User Manual.pdf  Xhorse VVDI PROG Update Information.pdf  Top 9 Reasons to get VVDI PROG Programmer:  The Built-in Lifetime Free Update Software: Make VVDIProg firmware update timely. High-speed USB communication interface: Make software automatically connect. Smart operation mode: Possible causes of error will be listed Reserve ports: For future updates. The self-test function: Check if the machine works well or not. Power Supply: Through USB cable, the software will automatically prompt if the external USB power supply is needed Software version: V5.1.0 VVDI PROG Main Functions:  Support R&W lots of chips include MC9S08 series, MC68HC(9)12 series, MC9S12 series, V850 series, H8X series, R8C series, PCF79XX series And most EEPROM chips etc. Support chip data verify, check blank function Support data file compare function Support R&W BMW N20, N55 ECU (show ISN directly) Stable R&W MC9S12XE series chips (5M48H/ 1N35H/ 2M53J/ 3M25J etc.) Support renew PCF79XX remote, currently support BMW E/F series (Please Note PCF79XX adapter is optional) Lots of connection diagram VVDI Prog Programmer Supported Type List:  Memory: ATMEL, CATALYST, EXEL, FAIRCHILD, INTEL, MICROCHIP, MITSUBISHI, ST, TOSHIBA, XICOR MCU: RENESAS V850, RENESAS H8X, RENESAS R8C, MOTOROLA MC68HC(9)08, MOTOROLA MC68HC(9)12 MOTOROLA MC9S08, MOTOROLA MC9S12, NXP PCF79XX, ST ST10F, INFINEON XC2XXX, ATMEL, ATMEGA XXXX, INFINEON XC164CS, MICROCHIP PIC18F VVDI Prog Programmer Support Model List:  ECU List: BMW E Series, BMW F Series, BOMBARDIER, CHANGAN, DELPHI, MAGNETI, MARELLI, RENAULT, OTHER IMMOBILIZER List: AUDI, BENZ, BMW, BUICK, CHEVROLET, STEC, CHRYSLER, FIAT, FORD, GREATWALL, INFINITI, LAND ROVER, JAGUAR, NISSAN, OPEL, PORSCHE, RENAULT, SAICMOTOR, VOLKSWAGEN, ZHONGHUA. DASHBOARD List: BUICK, CHANGAN, CHERY, CHEVROLET, DONGFENG, FAW, FORD, GEELY, GREATWALL, HAFEI, TOYOTA, HANTENG, HAIMA, HONDA, JAC, JAGUAR, JINBEI, JMC, LUXGEN, NISSAN, SGMW, VOLVO, ZHONGHUA, ZOTYE REMOTE List: BMW E Series, BMW F Series Supported Chip List: EEPROM Manufactures Types Support Remark ATMEL AT24CXX R AT25XXX R AT93CX6 R BOSCH B3XX R B4XX R B5XX R B58XXX R CATALYST CAT24CXX R CAT24WXX R CAT93CX6[A] R EXEL XL[S]24CXX R XL[S]93CX6 R FAIRCHILD FM24CXX R NM24CXX R NM93CX6 R GRUNDIG GRXX R HOLTEK HT93CX6 R MICROCHIP 24AAXX R 24[L]CXX R 93[L]CX6 R 93AAX6 R MITSUBISHI M6M800X1 R SEIKO S-24CXX R S-93CX6 R ST D80/D160 R Can erase the first 32 bytes M35080 R Can erase the first 32 bytes NEC M24CXX R ST ST24CXX R ST24EXX R ST24WXX R ST25CXX R ST25EXX R ST95P0X R Note: R means the type is supported, ￡ means the type will be supported in the future. MCU Manufactures Types Support Remark MOTOROLA MC9S12XEP R Can automatically determine D-FLASH/EEE space MC9S12XA R MC9S12XB R MC9S12XD R MC9S12XDT R MC9S12XDP R MC9S12XDQ R MC9S12DG R MC9S12DT R MC9S12P R MC9S12H R MC9S12HY ￡ MC9S12HA ￡ MC9S12HZ ￡ MC9S12XHZ ￡ MC9S12B ￡ MC9S12GC ￡ MC9S12XS ￡ MC9S12K ￡ MC9S12Q ￡ MC9S12C ￡ MC9S12P ￡ MC9HC(9)08 ￡ ATMEL ATTINY ￡ ATMEGEA ￡ NEC uPD70F ￡ ST TMS370 ￡ Note: R means the type is supported ￡ means the type will be supported in the future. ECU Manufactures Types Support Remark VAG MED17.1-TC1796 ￡ MED17.11-TC1796 ￡ VAG MEG17.5-TC1766 ￡ VAG MED17.5.1-TC1796 ￡ VAG MED17.5.2-TC1767 ￡ VAG MED17.5.5-TC1766 ￡ VAG MED17.5.20-TC1766 ￡ VAG EDC17 CP14/CP20-TC1796 ￡ VAG EDC17 CP04-TC1796 ￡ VAG EDC17 C46-TC1767 ￡ VAG EDC17 CP24-TC1796 ￡ VAG EDC17 CP44-TC1797 ￡ VAG EDC17 U01-TC1766 ￡ VAG EDC17 U05-TC1796 ￡ VAG/Porsche Siemens Continental SDI 3- TC1796 ￡ BMW MEVD172(N55) R MEVD172P(N20) R MEVD172G(N55) R MEVD172S(N55) R MEVD1724(N20) R MEVD1725(N13) R MEVD1726(N55) R MEVD1729(N20) R MEVD1728(N63/S63) R Note: R means the type is supported ￡ means the type will be supported in the future. VVDI Prog Programmer Unit Description:  1.16 Pin DIP socket Function: Read EEPROM chips Use method: Follow the image direction when inserting the DIP chip (PIN1 as yellow point show as the picture); SOP chip need soldering on 16Pin adaptor first, then insert the chip follow the image direction. 2. MCU Reflash Cable Function: Read & Write MC68HC(9)12, V850, H8X, R5C series chips,current version is V2 Use method: Soldering the line on pin of the chip before read & write Notes: (1) Please check all connection lines, ensure correct and reliable connection (2) Please don’t lengthen CLK and GND-C line, maybe cause read data failed. 3. ECU Reflash Cable Function: Read & Write engine ECU Use method: Connect the ECU and R&W Notes: Please check all connection lines, ensure correct and reliable connection 4. MC9S12 Reflash Cable Function: Read & Write MC9S08, MC9S12 series chips, current version is V1 Use method: Soldering the line on pin of the chip before read & write Notes: (1) Please check all connection lines, ensure correct and reliable connection. (2) Please Don’t lengthen CLK and GND-C line, maybe cause read data failed. Packing List:  1pc x Programmer multiplexer 1pc x Square USB cable 1pc x SOP16 test socket 1pc x 16pin converter (Support SOP/SOT/SSOP) 1pc x MCU reflash cable 1pc x ECU reflash cable 1pc x MC9S12 reflash cable (Used to program MC9S12 series chip) https://youtu.be/Xz1Cd6WsG3I
