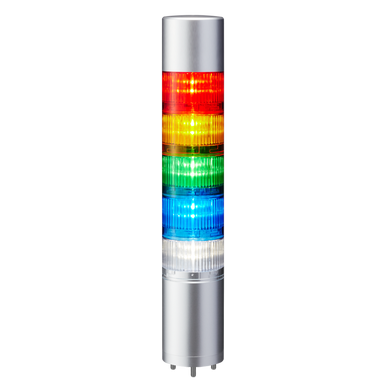

PATLITE LR6 Series 60mm LED Signal Towers

The PATLITE LR6 Series 60mm LED Signal Towers feature ultra-bright LEDs, a modular design, and a wide selection of options to take on the most challenging applications. Features re-designed lens and improved module construction, delivering bright, even light for visibility from further distances. The re-engineered, completely enclosed sound module maintains substantial water and dust protection while producing loud, omni-directional sound (LR6: 88dB at 1m). Its sleek, smooth form and rugged body construction are ideal for performance in harsh environments, carrying an IP65 protection rating. A modular “Twist and Lock” design allows for easy customization and configuration of LED units and sound modules.  Available in 2, 3, 4, or 5-tier models, with 3 mounting options: direct, pole with L-bracket, or pole with circular bracket. Only available in DC24V. 5-tier models include Red, Yellow, Green, Blue, and Clear (RYGBC) LEDs, 4-tier models include Red, Yellow, Green, and Blue (RYGB) LEDs, 3-tier models include Red, Yellow, and Green (RYG) LEDs, and 2-tier models include Red and Green (RG) LEDs. Each model is 60mm in diameter. All models include LED modules, flashing/buzzing modules, and a cable.   Additional Product Specifications: Specification Value Operating Ambient Temperature -4 F to 122 F Operating Humidity Range 90% RH or less, no condensation Storage Temperature Range -22 F to 140F Storage Humidity Range 90% RH or less, no condensation Mounting Location Indoor Use Mounting Direction Upright Position Protection Rating IP65(IEC 60529) / NEMA TYPE 4X, 13 Environmental Conditions Upright Position Insulation Resistance More than 1MΩ at DC500V between the power input lead and chassis Withstand Voltage AC 500V for 1 minute between terminals and chassis without breaking insulation (M2: AC1500V for 1 min.) Flash Rate 60 ±2 Flashes / min Sound Level LR6 Typ. 88dB Sound Reduction ab. -10dB reduction Environmental Conditions Buzzer Sound No.4 (Sweep) from all directions at a 1m distance Buzzer Sound 4 patterns: No.1 Rapid Intermittent sound No.2 Continuous sound No.3 Rapid Hi-low No.4 Sweep sound Transistor Output NPN / PNP (AC100 - 240V is NPN only) Conformity Standards ●UL 508, CSA-C22.2 No.14●FCC Part 15 Subpart B Class A●RoHS Directive (EN 50581)●EMC Directive (EN 61000-6-4, EN 61000-6-2)●KC (KN 61000-6-4, KN 61000-6-2)*3●Low-voltage Directive (IEC/EN 60947-5-1, EN62471)   LED Unit Specifications           Color Red Amber Green Blue Clear Current Consumption / Power Consumption Typ. 0.04A/1W   Max. 0.045A/1.3W     Buzzer Unit Specifications     Current Consumption / Power Consumption Typ. 0.04A/1W Max. 0.3A/1.3W
