90mm 5.0L V-Band Throttle Body

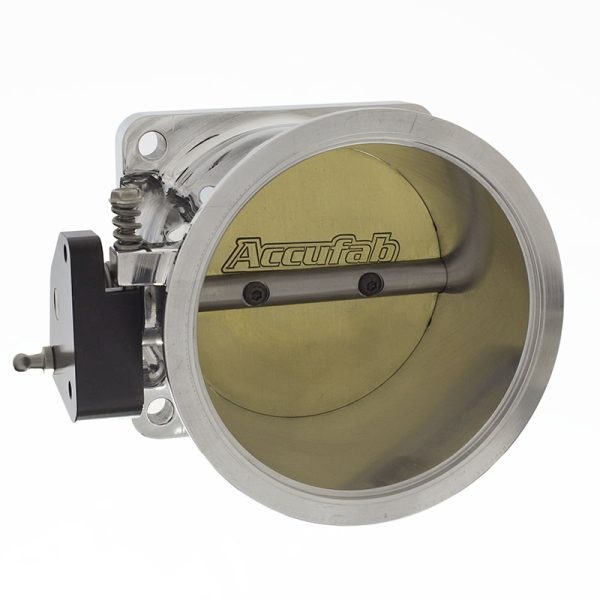

Description Accufab’s Mustang 5.0L 1986-1993 90mm V-Band Throttle Body is designed to be used with a v-band instead of a hose clamp, v-band sold separately. This version features a full body stainless steel shaft, 3 threaded options on the aluminum linkage to accommodate different ball stud positions, an o-ring groove on the back, plus, it’s shaft is sealed and air leak resistant up to 100 psi.  Also, the 90mm is measured at the blade, not the inlet and requires 4″ tubing.  Although not pictured, there is a provision to use the IAC on this throttle body.Our 90mm V-Band throttle body is available Polished or anodized black.IMPORTANT: Pictures are a representation of the product.  Actual product may differ. All 90mm throttle bodies have provision for the IAC motor.Better Air Flow for More Power: This 90mm upgrade will improve your Mustangs response and horsepower. It’s the perfect starting point for future modifications. In addition, spacers are offered as an option in combination with our throttle body.Exceptional Quality: Accufab’s quality is second to none! This part is CNC machined from 6061-T6 billet aluminum and the exterior is polished to an eye-catching finish or anodized black. The shafts are also CNC machined from stainless for durability and quality, with brass blades and the highest quality bushings, bearings and screws. Furthermore, this performance part features a split shaft design which helps prevent the shaft from breaking under intense pressure. Manufactured in the USA.Application: Designed for use on a Ford 5.0L Mustang 1986-1993.Technical Notes: Idle speed should only be set by adjusting the TPS. DO NOT adjust any screws on the throttle body. These screws are pre-set at Accufab.Accessories Included: The base o-ring and 1/4″ 10-24 threaded ball stud and IAC Gasket. No mounting hardware available.An optional accessory is our TPSGM which easily bolts on to the throttle body and allows the use of a late model GM style TPS instead of a Ford.CLICK HERE > Mustang 5.0L Throttle Body GuideThrottle Body Dimensions. Bolt and Thread Info > CLICK HERECFM Air Flow – Throttle Bodies DisclaimerOur products have been designed for off road/racing applications only. These products are not legal for use in the state of California on any pollution/control motor vehicle. These performance products are legal in California only on a racing vehicle which may never be used or driven on a public highway. CA WARNING: This product can expose you to chemicals which are known to the State of California to cause cancer or birth defects or other reproductive harm. For more information, visit www.P65warnings.ca.gov
